LED FACTORY LIGHT
Factory lights & Shade type
- IP67 design that can be used for pendant and indoor
- outdoor use at the same time
- Alternative lighting for metal halogen and sodium lamp
- Used external SMPS of Philips and Solu-m
- Lighting that uses LED guarantees long-term reliability
- Eco-friendly and highly efficient lighting with low power consumption
- Lighting with wide light distribution

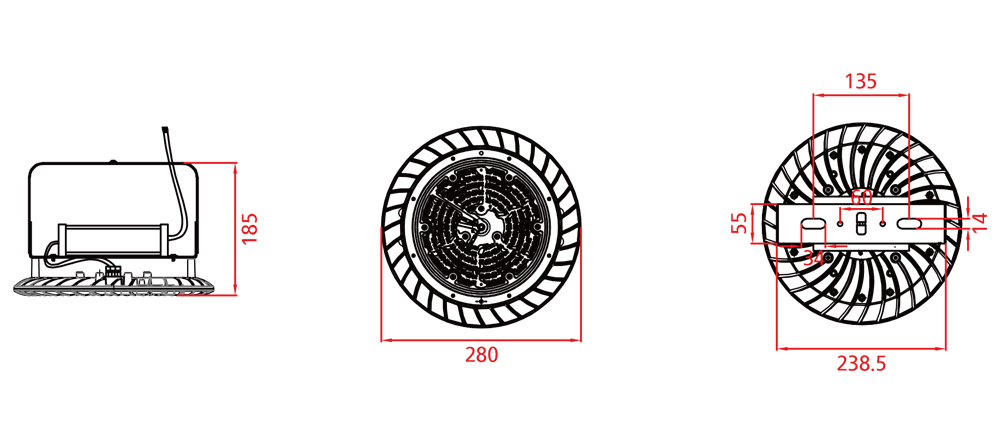

drawing
specification
| Model | Power consumption (W) |
Rated speed (lm) |
Light efficiency (Over lm/W) |
Color temperature (K) |
Color rendering (Ra) |
Weight (kg) |
Rated speed (lm) |
Certificate | Specification |
|---|---|---|---|---|---|---|---|---|---|
| DMHL-060-028 | 60 | 6 900 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-080-028 | 80 | 9 200 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-100-028 | 100 | 11 500 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-120-028 | 120 | 13 800 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-060-028L | 60 | 6 900 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KS인 | Specification |
| DMHL-100-028L | 100 | 11 000 | 110 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-120-028L | 120 | 13 200 | 110 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KS인증 | Specification |
| DMHL-150-028L | 150 | 17 250 | 115 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-060-028H | 60 | 8 400 | 140 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-080-028H | 80 | 11 200 | 140 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-100-028H | 100 | 14 000 | 140 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-120-028H | 120 | 16 800 | 140 | 5 700 | ≥80 | 3.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
| DMHL-100-028N | 100 | 11 500 | 115 | 5 700 | ≥80 | 3.1 | IP44 | 에너지절약 KS인증 | Specification |
| DMHL-150-028N | 150 | 17 250 | 115 | 5 700 | ≥80 | 3.1 | IP44 | 에너지절약 KS인증 | Specification |
| DMHL-200-028L | 200 | 23 000 | 115 | 5 700 | ≥80 | 4.1 | IP67 | 에너지절약 KC인증 KS인증 | Specification |
