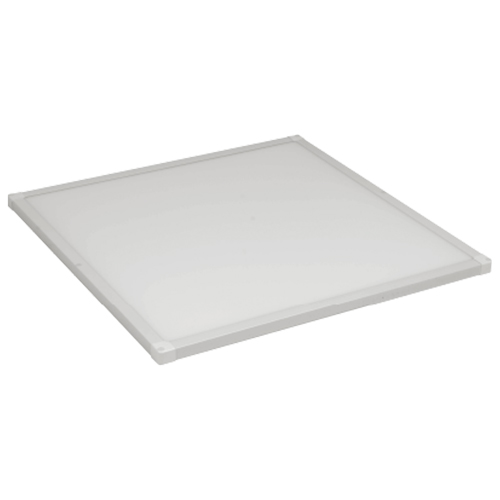

LED FLAT PANEL LIGHT
Slim slab lighting (Square)

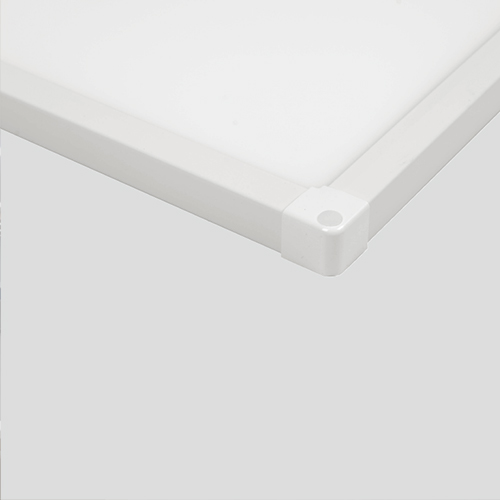

- Non-perforated slim edge slab lighting
- Guaranteed long-term reliability with lighting using LED
- Eco-friendly and highly efficient product with low power consumption
- Lighting with wide light distribution

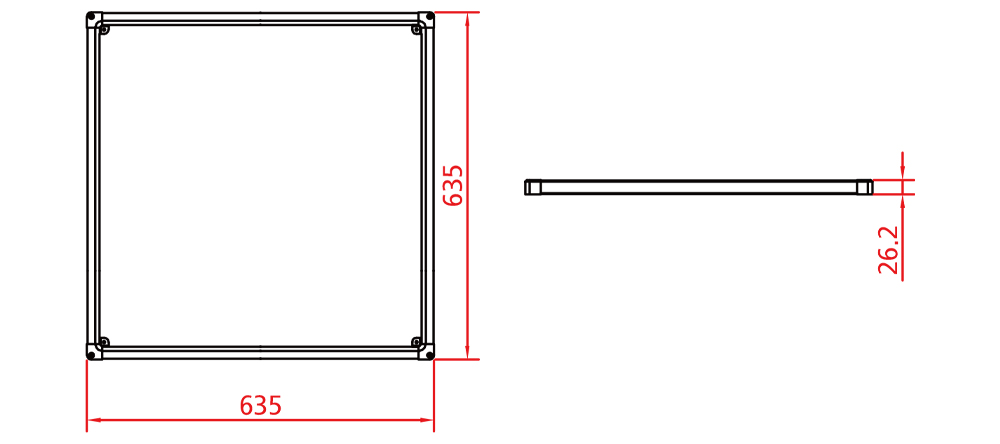

drawing
specification
| Model | SIZE (mm) |
Power consumption (W) |
Rated speed (lm) |
Light efficiency (Over lm/W) |
Color temperature (K) |
Color rendering (Ra) |
Weight (g) |
Certificate | Specification |
|---|---|---|---|---|---|---|---|---|---|
| DMFL-040-6060A | 635 X 635 X 26.2 | 40 | 4 400 | 110 | 5 700 | ≥80 | 3.4 | 에너지절약 KC인증 KS인증 | Specification |
| DMFL-050-6060A | 635 X 635 X 26.2 | 50 | 5 500 | 110 | 5 700 | ≥80 | 3.4 | 에너지절약 KC인증 KS인증 | Specification |
| DMFL-025-33A0AD7 | 325 X 325 X 26.2 | 25 | 2 250 | 90 | 5 700 | ≥80 | 1.6 | KS인증 | Specification |
| DMFL-040-55A0AD7 | 540 X 540 X 26.2 | 40 | 3 600 | 90 | 5 700 | ≥80 | 2.6 | KS인증 | Specification |
| DMFL-050-55A0AD7 | 540 X 540 X 26.2 | 50 | 4 500 | 90 | 5 700 | ≥80 | 2.6 | KS인증 | Specification |
