SLIM LENS TYPE FLAT PANEL LIGHT
Non-perforated slim direct slab (Lens type)
- Non-perforated slim edge slab lighting
- Guaranteed reliability for long time with lighting using LED
- Eco-friendly and highly efficient product with low power consumption
- Lighting with wide light distribution

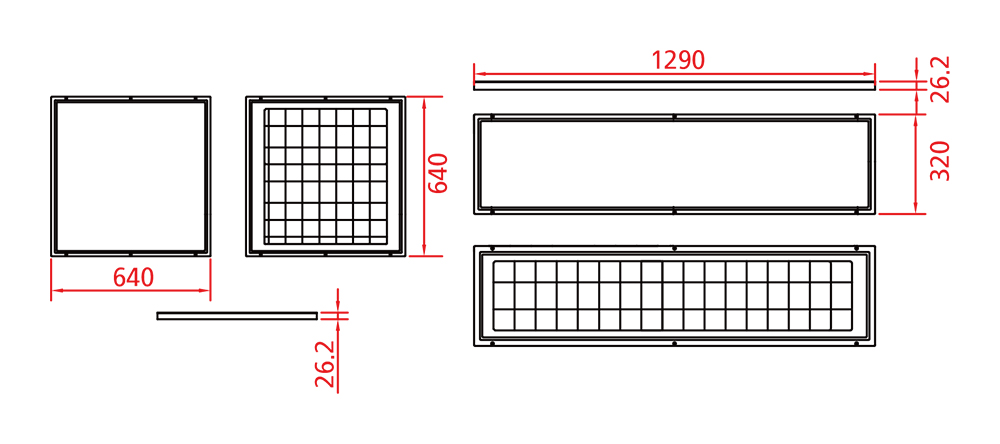

drawing
specification
| Model | SIZE (mm) |
Power consumption (W) |
Rated speed (lm) |
Light efficiency (Over lm/W) |
Color temperature (K) |
Color rendering (Ra) |
Certificate | Specification |
|---|---|---|---|---|---|---|---|---|
| DMUF-040-13DNBN7 | 1290 X 320 X 26.2 | 40 | 4 200 | 105 | 5,700 | 80 | 에너지절약 KS인증 | Specification |
| DMUF-050-13DNAN7 | 1290 X 320 X 26.2 | 50 | 5 250 | 105 | 5 700 | 80 | 에너지절약 KS인증 | Specification |
| DMUF-040-66DNBN7 | 640 X 640 X 26.2 | 40 | 4 200 | 105 | 5 700 | 80 | 에너지절약 KS인증 | Specification |
| DMUF-050-66DNAN7 | 640 X 640 X 26.2 | 50 | 5 250 | 105 | 5 700 | 80 | 에너지절약 KS인증 | Specification |
| DMUF-025-63DNAN7 | 640 X 320 X 26.2 | 25 | 2 250 | 90 | 5 700 | 80 | KS인증 | Specification |
| DMUF-040-12DNAN7 | 1290 X 200 X 26.2 | 40 | 3 600 | 90 | 5 700 | 80 | KS인증 | Specification |
| DMUF-040-55DNAN7 | 540 X 540 X 26.2 | 40 | 3 600 | 90 | 5 700 | 80 | KS인증 | Specification |
