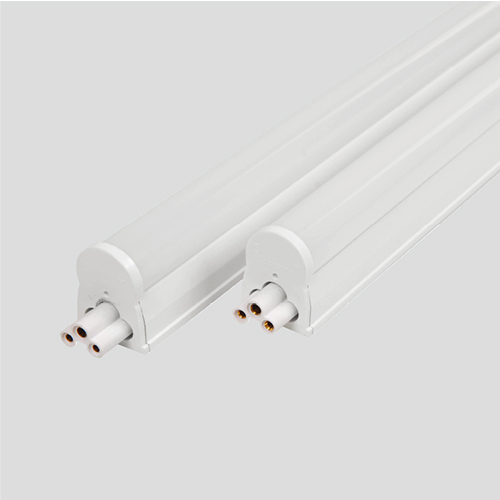

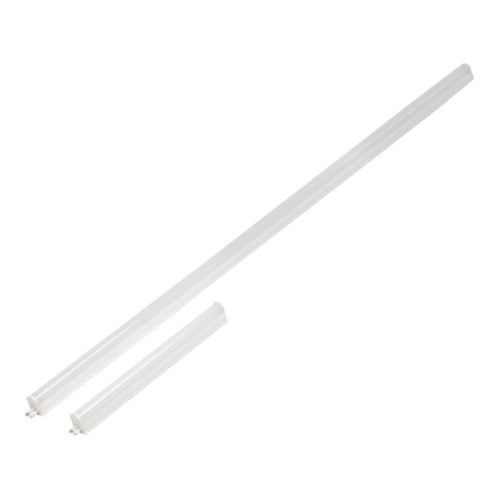

LED BAR LIGHT
T5
- Lighting that uses LED guarantees long-term reliability
- Eco-friendly and highly efficient lighting with low power consumption
- Lighting with wide light distribution

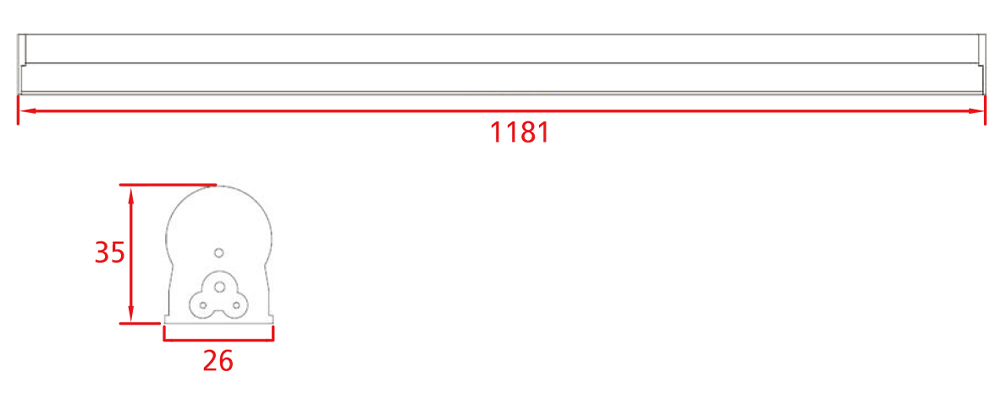

drawing
specification
| Model | SIZE (mm) |
Power consumption (W) |
Rated speed (lm) |
Light efficiency (Over lm/W) |
Color temperature (K) |
Color rendering (Ra) |
Weight (g) |
Certificate | Specification |
|---|---|---|---|---|---|---|---|---|---|
| DMT5-010-03S30 | 310 X 26 X 35 | 10 | 900 | 90 | 3 000 | ≥80 | · | KS인증 | Specification |
| DMT5-010-03S57 | 310 X 26 X 35 | 10 | 900 | 90 | 5 700 | ≥80 | · | KS인증 | Specification |
| DMT5-012-06S30 | 571 X 26 X 35 | 12 | 1 080 | 90 | 3 000 | ≥80 | · | KS인증 | Specification |
| DMT5-012-06S57 | 571 X 26 X 35 | 12 | 1 080 | 90 | 5 700 | ≥80 | · | KS인증 | Specification |
| DMT5-015-09S30 | 871 X 26 X 35 | 15 | 1 350 | 90 | 3 000 | ≥80 | · | KS인증 | Specification |
| DMT5-015-09S57 | 871 X 26 X 35 | 15 | 1 350 | 90 | 5 700 | ≥80 | · | KS인증 | Specification |
| DMT5-020-12S30 | 1175 X 26 X 35 | 20 | 1 800 | 90 | 3 000 | ≥80 | · | KS인증 | Specification |
| DMT5-020-12S40 | 1175 X 26 X 35 | 20 | 2 100 | 105 | 4 000 | ≥80 | · | 에너지절약 KS인증 | Specification |
| DMT5-020-12S57 | 1175 X 26 X 35 | 20 | 1 800 | 90 | 5 700 | ≥80 | · | KS인증 | Specification |
